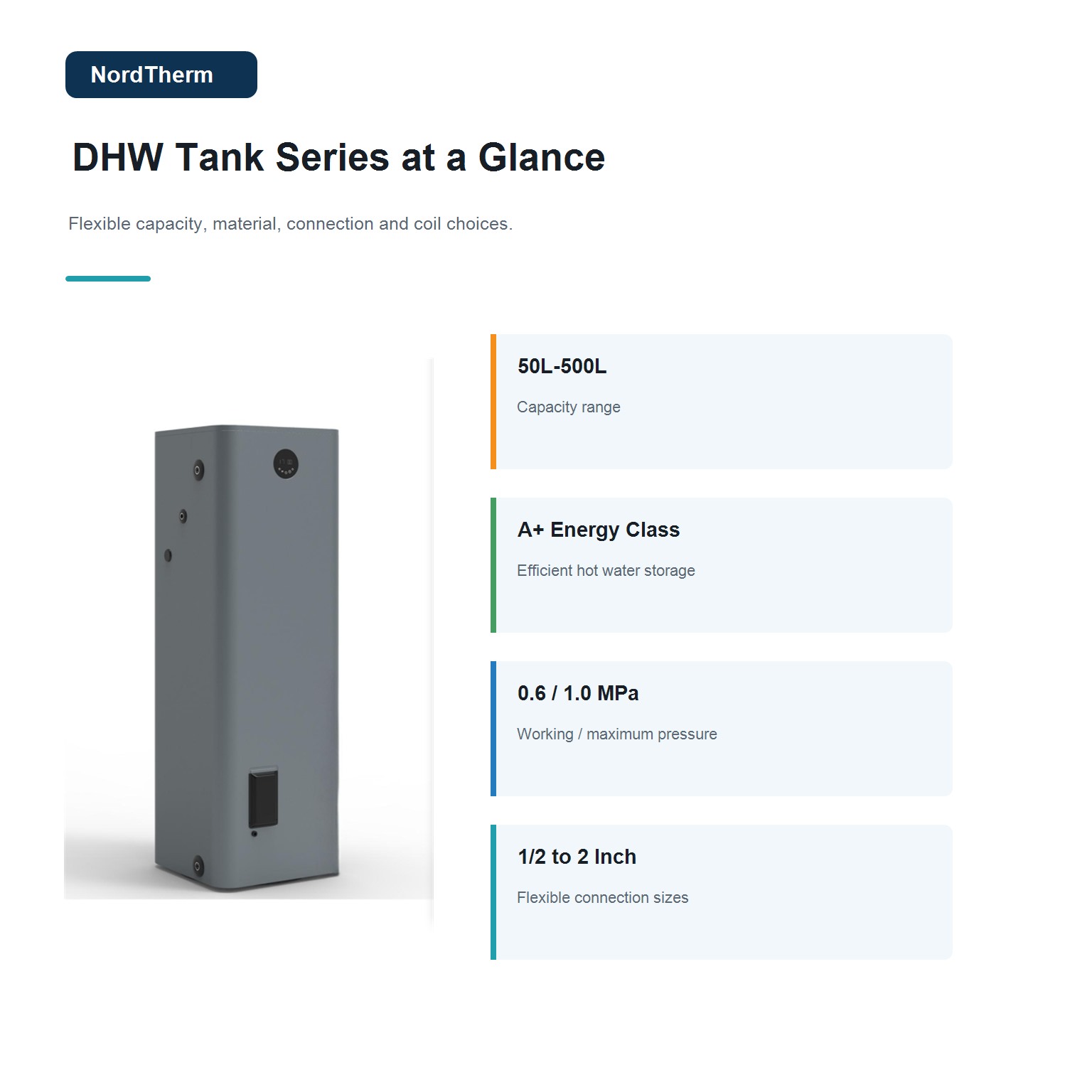

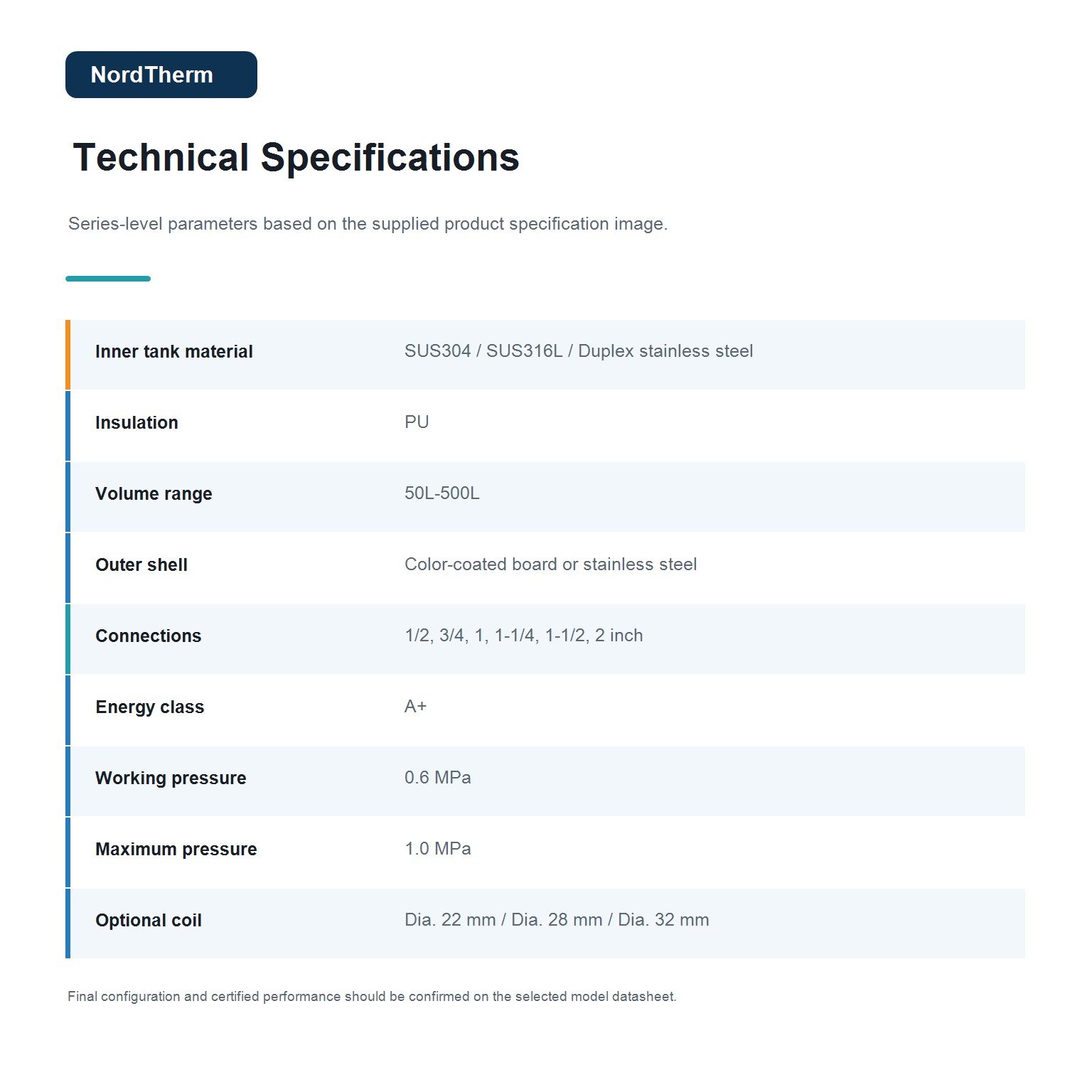

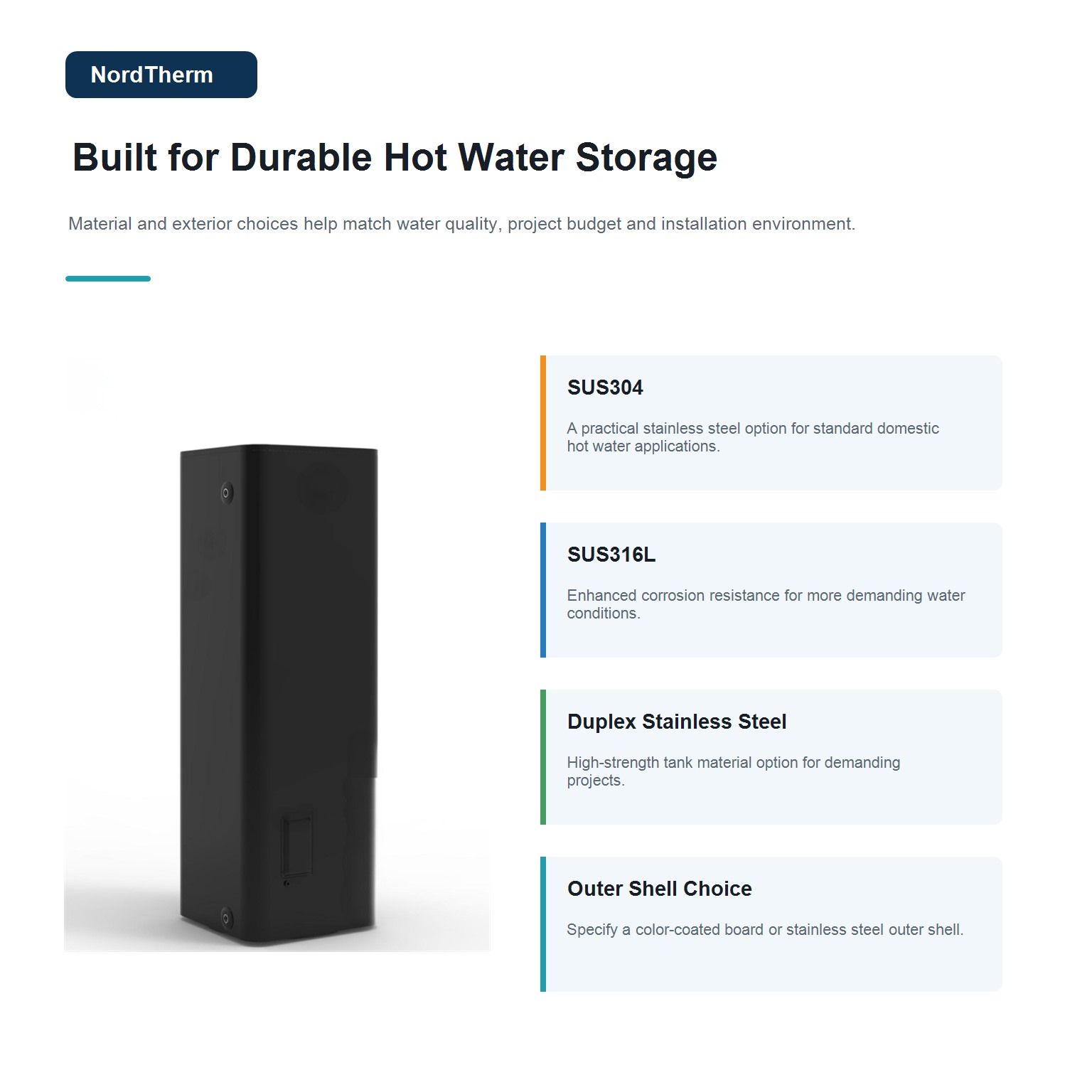

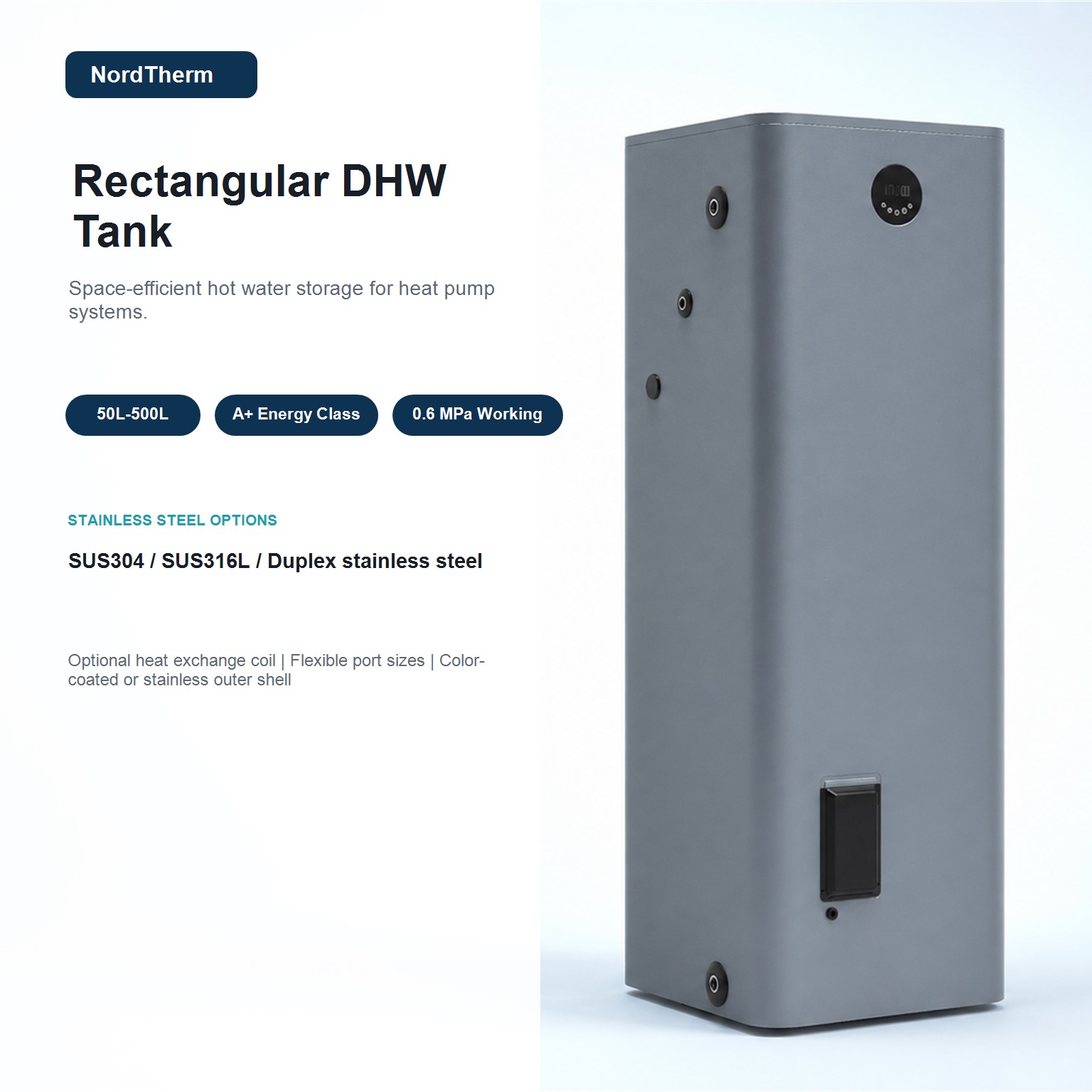

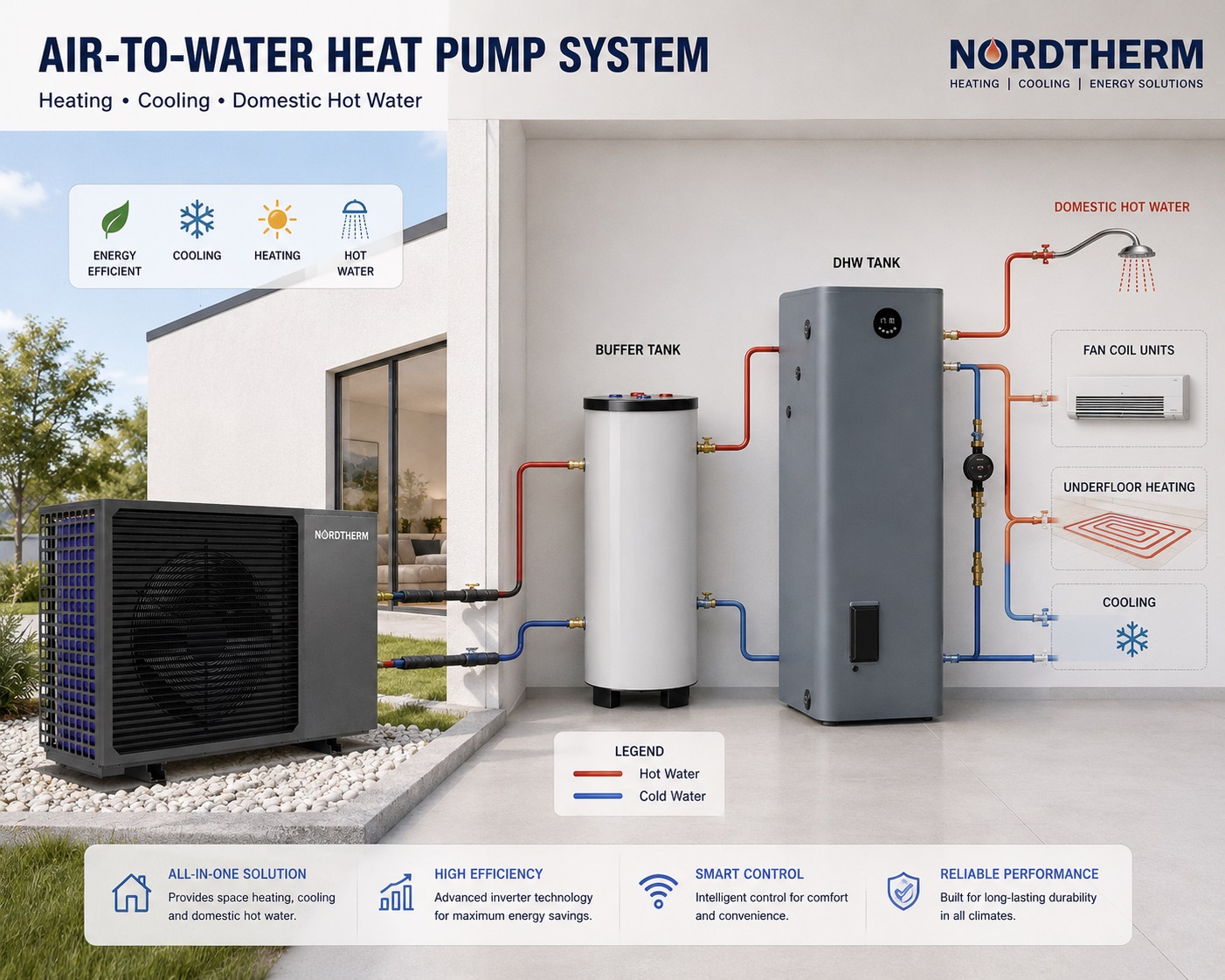

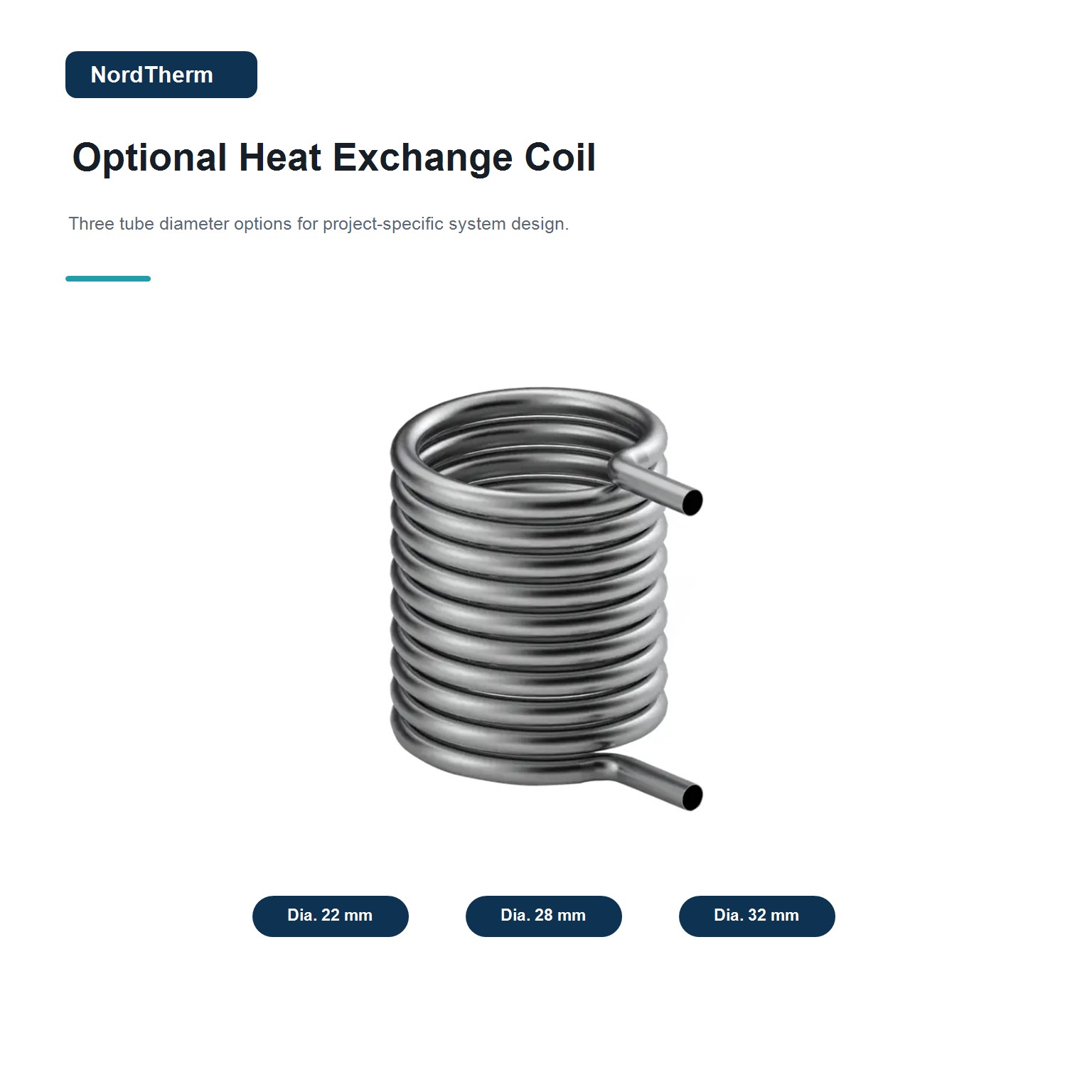

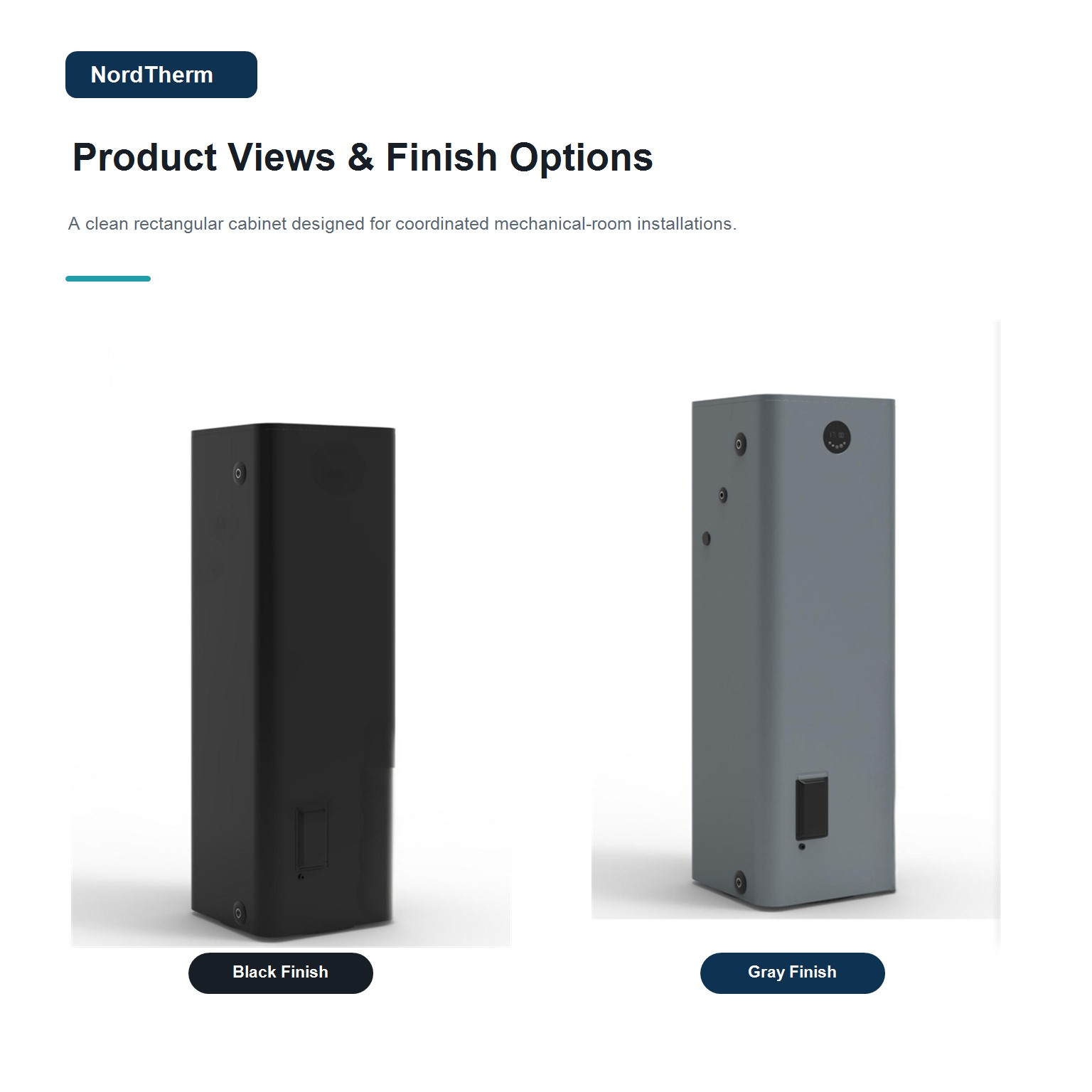

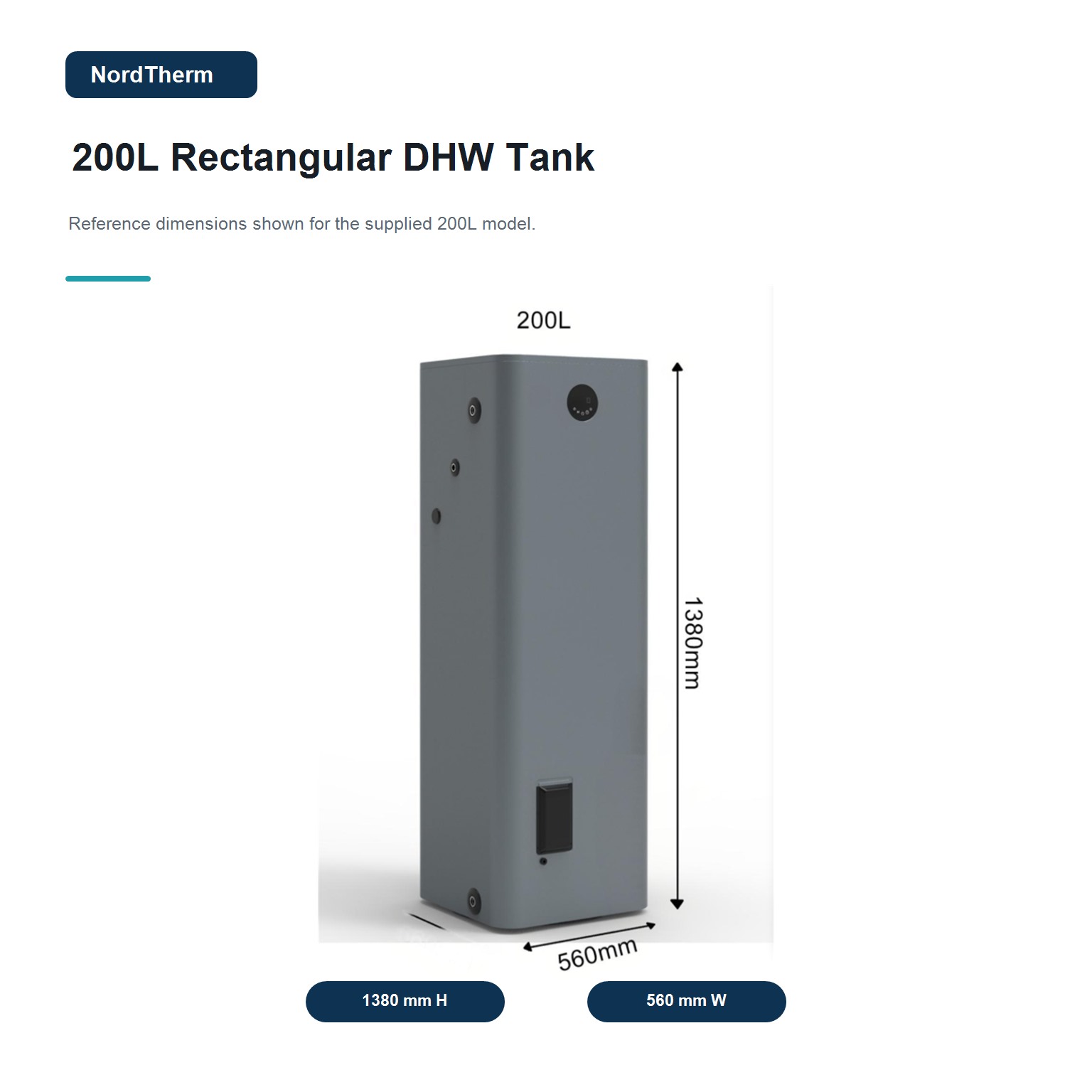

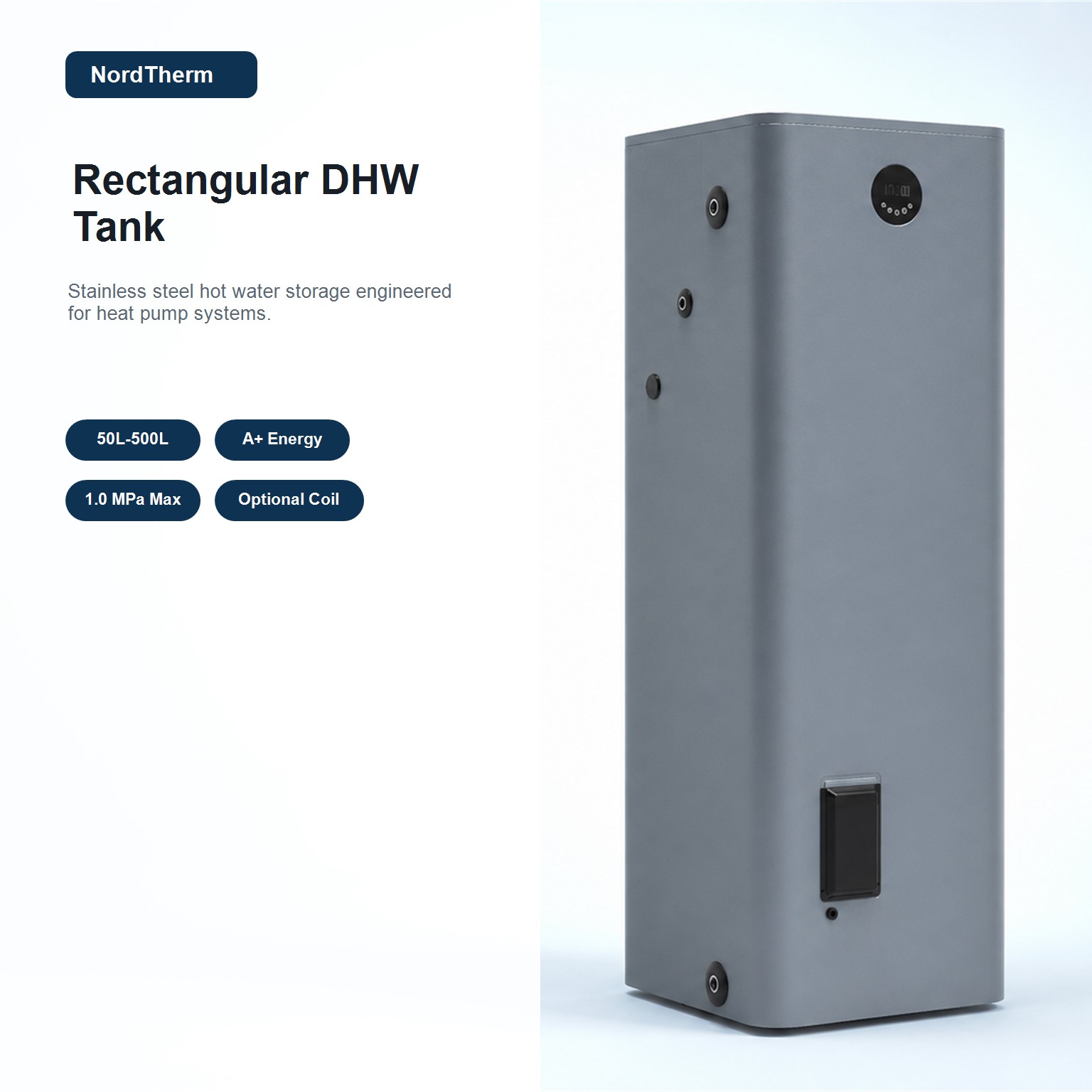

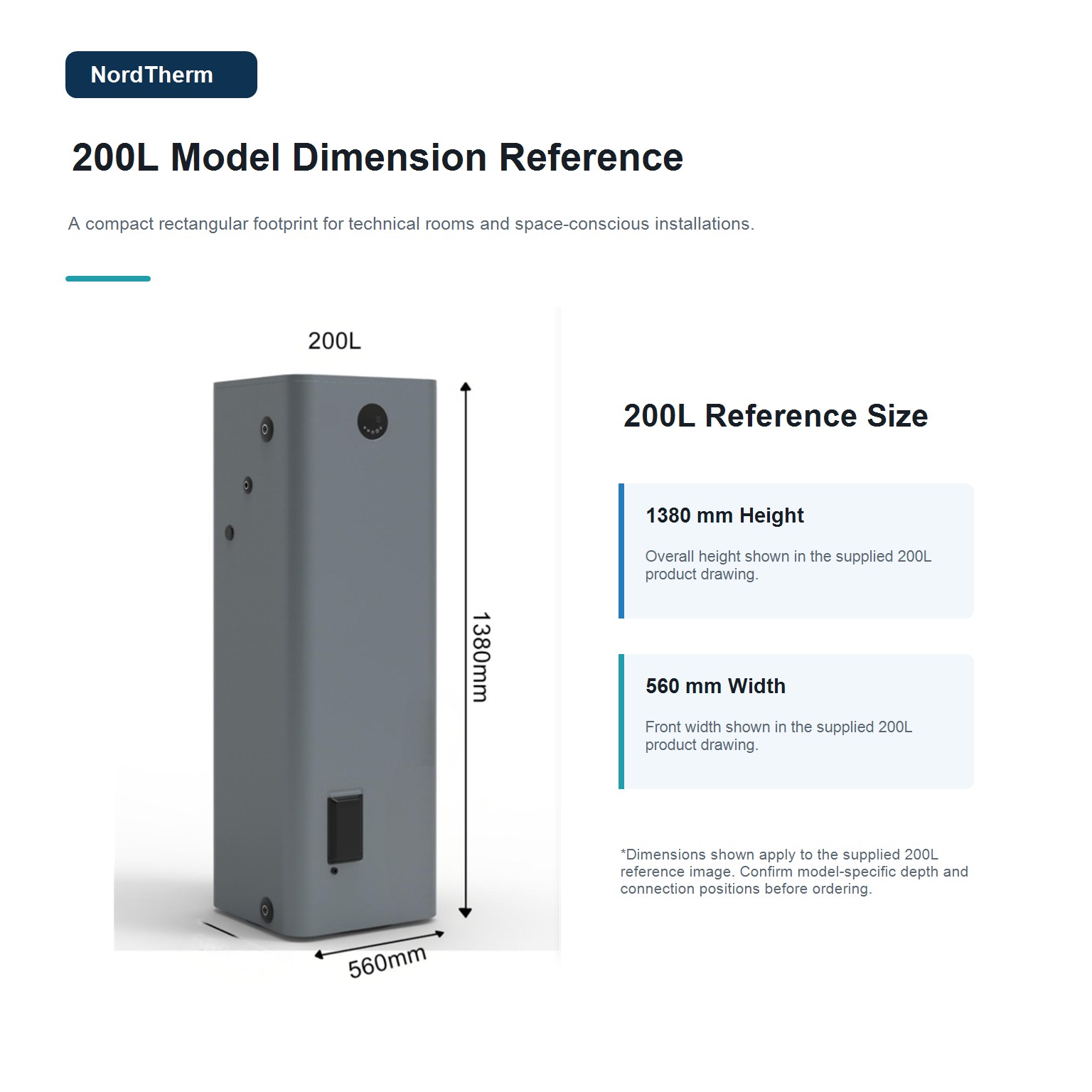

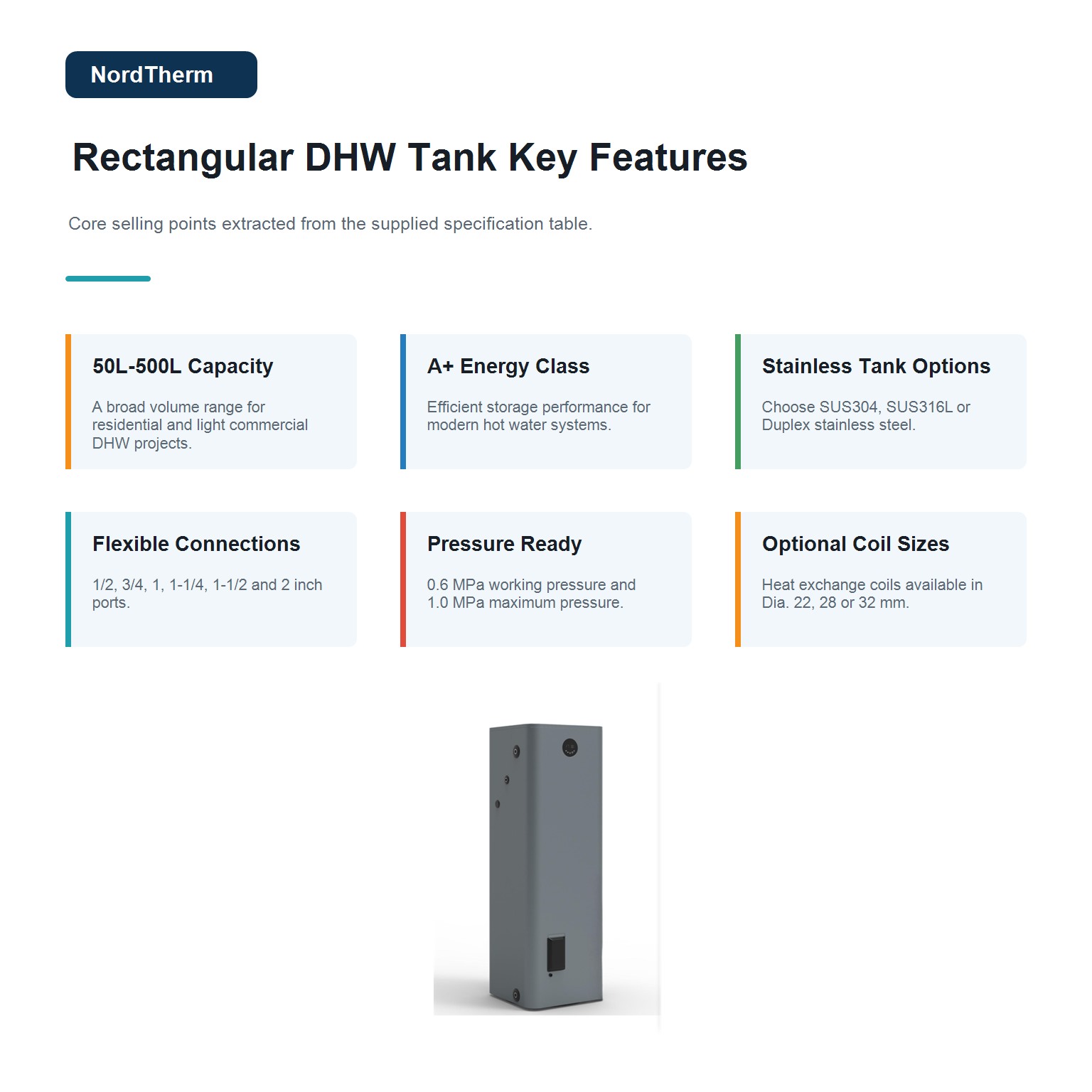

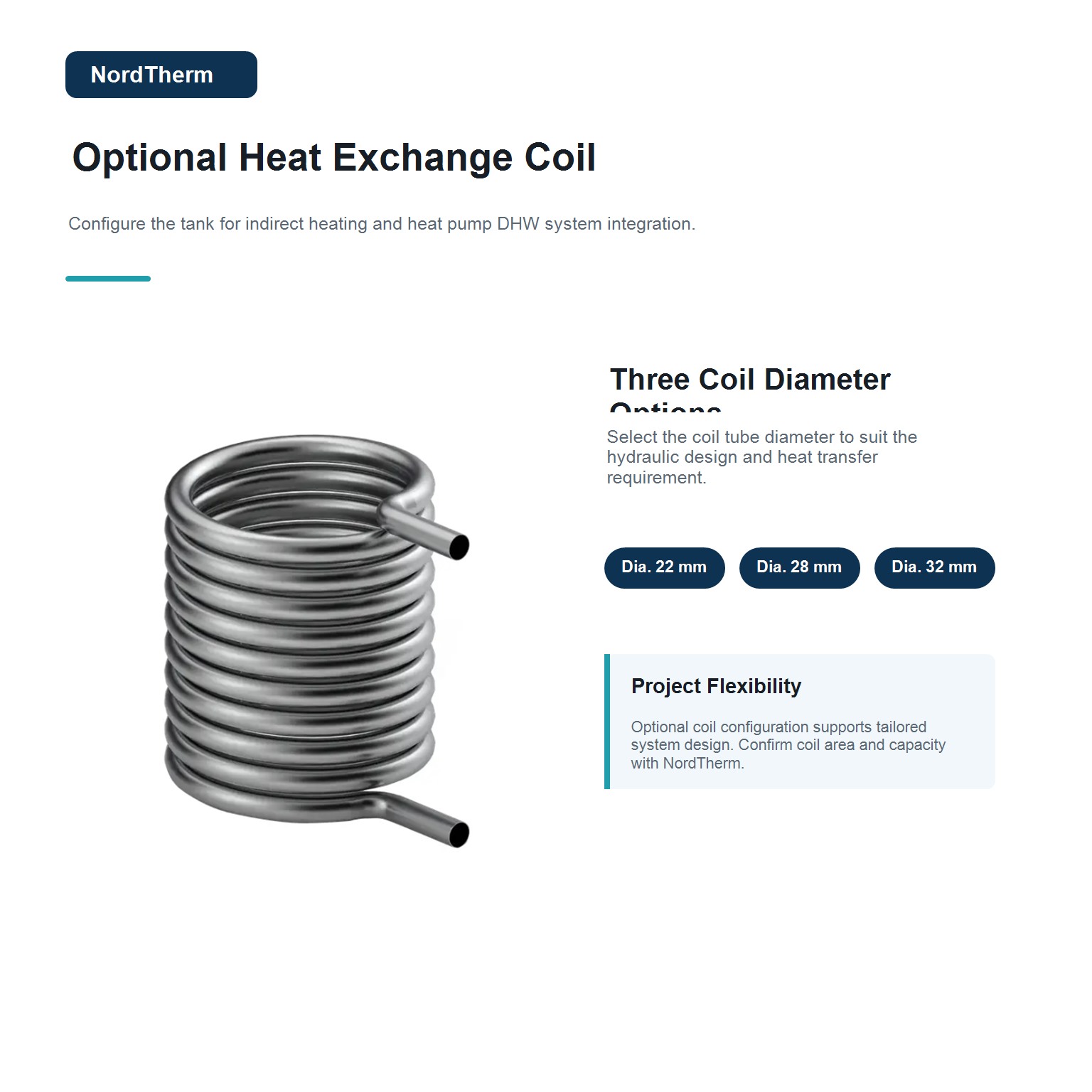

The NordTherm rectangular DHW tank provides space-efficient domestic hot water storage for heat pump systems. Available from 50L to 500L, the series combines an A+ energy class with durable inner tank options in SUS304, SUS316L or Duplex stainless steel. Customers can select a color-coated board or stainless steel outer shell to suit different installation environments. Flexible connections from 1/2 inch to 2 inch simplify hydraulic integration, while the optional heat exchange coil is offered with Ø22 mm, Ø28 mm or Ø32 mm tube diameters for project-specific indirect heating requirements. The tank is rated for 0.6 MPa working pressure and 1.0 MPa maximum pressure. A 200L reference model measures 1380 mm in height and 560 mm in width according to the supplied dimensional image. Final dimensions, coil area, connection positions and certified performance should be confirmed on the selected model datasheet.
